10.4 SmartTouch-1000B Fanless LCD Touch Screen Panel PC - Water Resistant Front Panel  ![10.4 <font color=orange> SmartTouch-1000B </font>Fanless LCD Touch Screen Panel PC - Water Resistant Front Panel]()

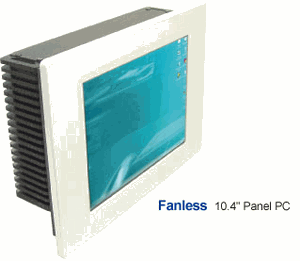

SmartTouch-1000B Fanless Panel PC
provides Water Proof / Touch Screen / Fanless Function.
It can be easily mounted with Wall / Information Mech. / Ticket Mech. ...ect .
Open-frame mechanical design is available upon customer's request.
Specification:
Panel & Chassis
Display size: 10.4"
Resolution: 800X480
Brightness(cd/m2): 220
Contrast Ratio: 400:1
Number of Colors: 262k
Touch Screen: 8 wires resistance type
Mounting Spec.: VESA75/ 100
Panel frame water proof: IP65 Front Panel
Dimension (panel)(HxWxD): 9(H)x310(W)x230(D) mm
Dimension (case)(HxWxD): 77(H)x280(W)x200(D) mm
Material: SECC
Weight:7.0 Kg " 15.42 Lbs" (inc. MB)
Main Board: 1000B, Fanless
CPU:VIA Eden ULV 1.0GHz
Max Memory: up to 1GB DDRII (SODIMMx1)
Storage: CF
I/O standard: 1xRS232 , 1x LAN, 2xUSB, 1x Line-out, 1x mic-in, 1xVGA
Expansion: mini PCI
Power supply: Standard +12V
Operating Temperature: 0- 55°C
|
